Details：

Ø Applications

Apply  to  the measurement of Fantail profile and height for ACA parts, tweaking Fantail if it is out of Spec.

Ø Features

  ØIt can measure Fantail Profile and Height  through CCD system, and can tweak the Profile until it is within the spec.

  ØHigh precision

  ØAlarming if reject

  ØOn line SPC support

  ØError Proofing, Flexibility

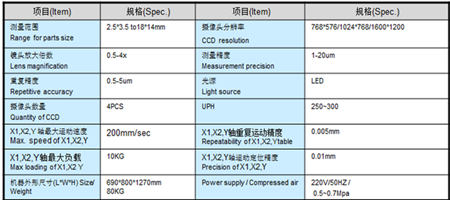

  Ø   Specifications

  Ø  Software

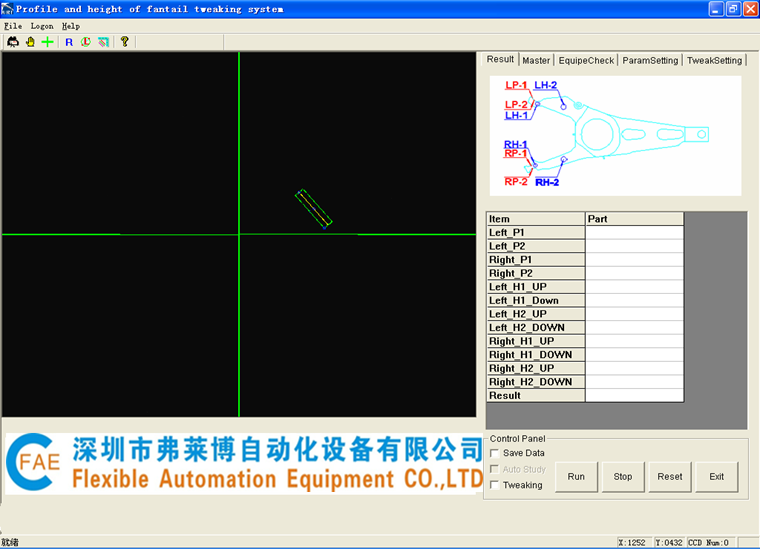

Data-processing interface, Pitch, Arm Height, Barcode, and Result of ET testing is on display.

Parameter setting interface,The parameter for measuring & tweaking can be set freely here.

Generate Excel automatically,Easy access to the back-end data system, Easy traceability.

On line SPC,Provide on line SPC system for the Engineering Analysis, Easy access to machine monitoring system.
