Fantail Profile Measurement Machine

Apply to the measurement of Fantial profile and height for ACA parts

Details：

Applications

Apply to the measurement of Fantail profile and height for ACA parts

Features

It can measure Fantail Profile and Arm Height through CCD camera vision system.

High precision

Alarming if reject

On line SPC support

Error Proofing, Flexibility

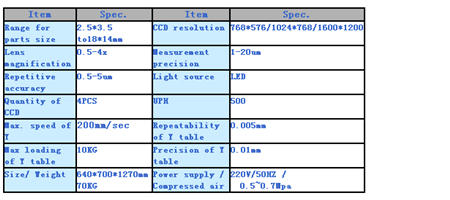

Specifications

Software

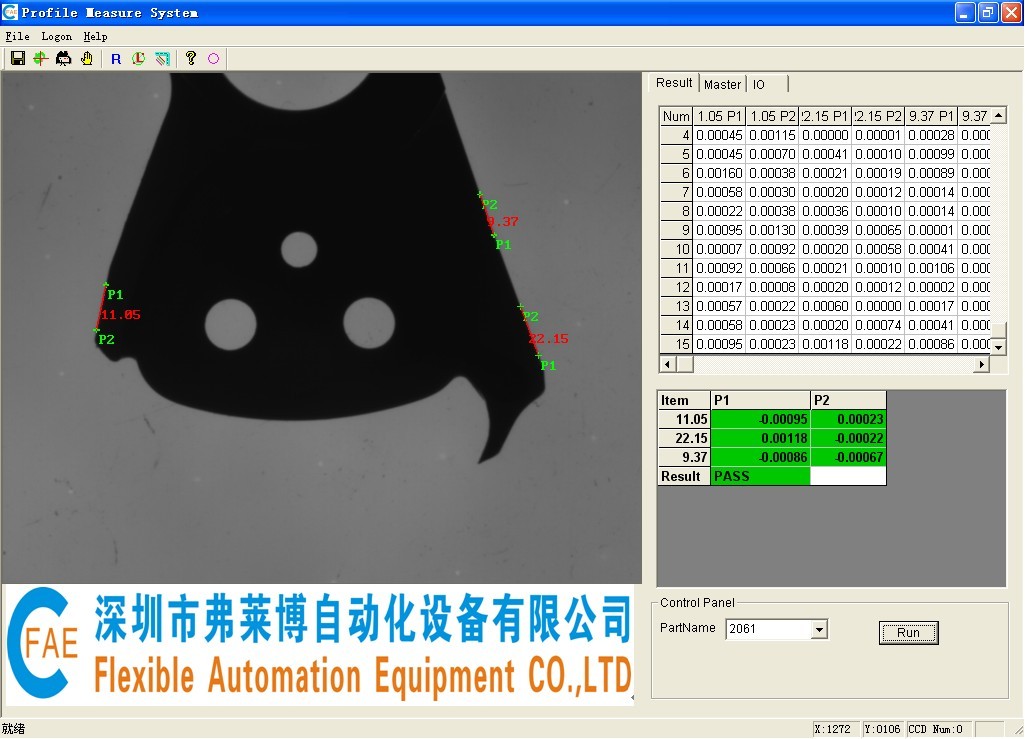

Data-processing interface, Pitch, Arm Height, Barcode, and Result of ET testing is on display.

Parameter setting interface,The parameter for measuring & tweaking can be set freely here.

Generate Excel automatically,Easy access to the back-end data system, Easy traceability.

Automation equipment

On line SPC,Provide on line SPC system for the Engineering Analysis, Easy access to machine monitoring system.
